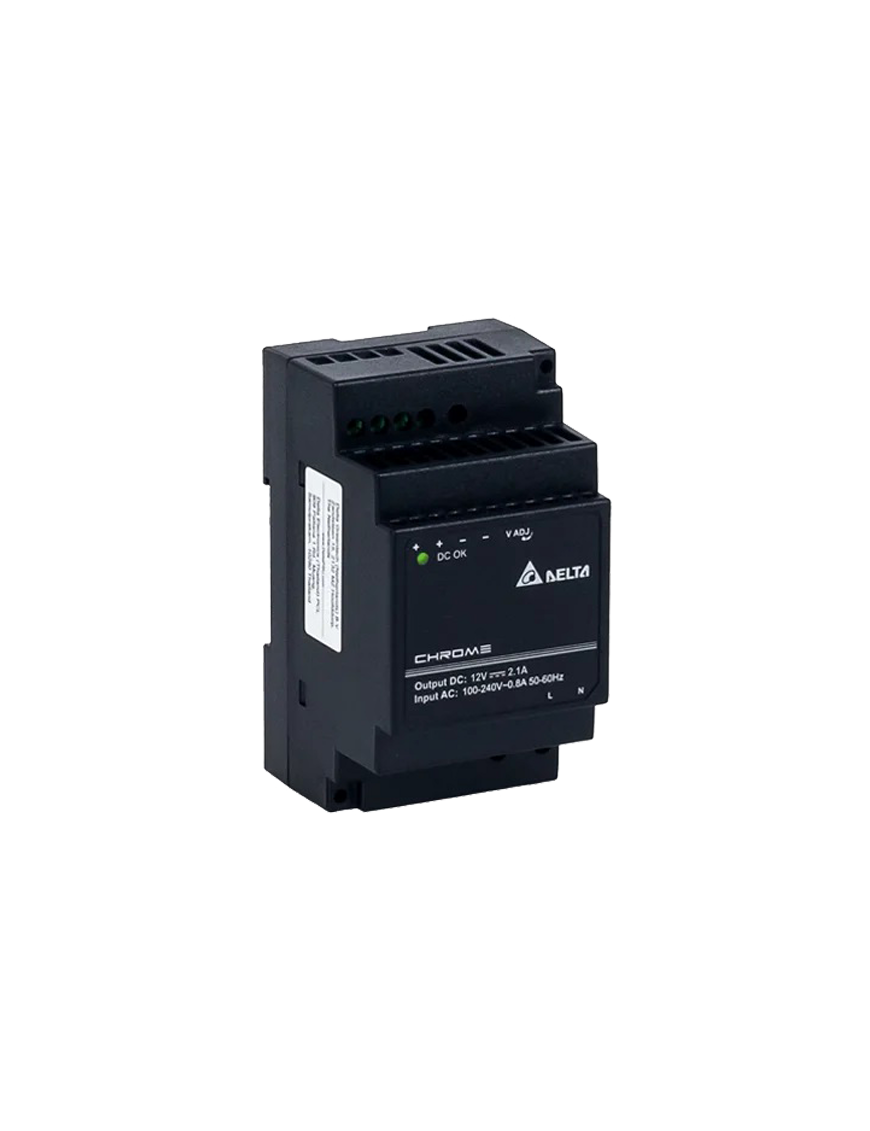

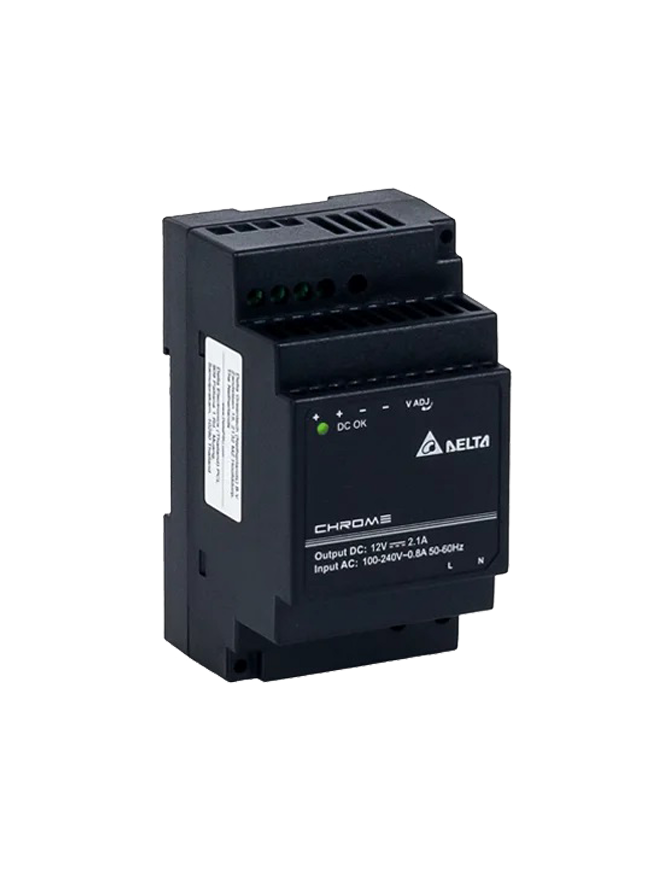

DRC-30-12 ΤΡΟΦΟΔΟΤΙΚΟ DELTA ΡΑΓΑΣ DRC-12V30W1AZ DELTA ΤΡΟΦΟΔΟΤΙΚΑ

Output Current: 2.1A

Output Voltage: 12V

Output Voltage Adjustment Range: 11.5-14.5Vdc

Output Power: 25W

Line Regulation: < 0.5% (@ 90-264Vac input, 100% load)

Load Regulation: < 1.0% (@ 90-264Vac input, 0-100% load)

PARD: < 100mVpp

Start-up Time: < 2,000ms @ nominal input (100% load)

Hold-up Time: > 25ms @ 115Vac, > 60ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage): ± 5% @ 90-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)

Start-up with Capacitive Loads: 3,000µF Max

Rise Time: < 70ms @ nominal input (100% load)

Nominal Input Voltage: 100-240Vac

Input Voltage Range: 90-264Vac

Nominal Input Frequency: 50-60Hz

Input Frequency Range: 47-63Hz

DC Input Voltage Range: 125-375Vdc

Input Current: < 0.80A @ 115Vac, < 0.60A @ 230Vac

Efficiency at 100% load: > 85.0% @ 115Vac & 230Vac

Inrush Current: < 25A @ 115Vac, < 50A @ 230Vac

Leakage Current: < 0.25mA @ 240Vac

Power Dissipation: 0% load: < 0.3W @ 115Vac & 230Vac, 100% load: < 4.4W @ 115Vac & 230Vac

Case Chassis / Cover: Plastic

Indicator: Green LED (DC OK)

Cooling System: Convection

Input Terminal: 2 Pins (Rated 300V/25A)

Output Terminal: 4 Pins (Rated 300V/25A)

Noise Sound Pressure Level (SPL): < 25dBA

Mounting Rail: Standard TS35 DIN Rail in accordance with EN 60715

Wire: Input / Output: AWG 22-12

Unit Weight: 0.14 kg (0.31 lb)

Vibration (Operating) : IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak);
10 min per cycle, 60 min for all X, Y, Z directions

Shock Test (Operating): IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms,
3 shocks for each 3 directions, 9 times in total

Operating Temperature: -25°C to +71°C

Storage Temperature: -25°C to +85°C

Power De-rating: > 55°C de-rate power by 2.5% / °C

Operating Humidity: 5 to 95% RH (Non-Condensing)

Operating Altitude: 0 to 2,000 Meters (6,560 ft.)

Pollution Degree: 2

Over Voltage Category: II

Overvoltage: < 17.4V, SELV Output, Latch Mode

Overload / Overcurrent: > 130% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature: > 75°C Surrounding Air Temperature @ 100% load, Latch Mode

Short Circuit: Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection: IP20

Protection Against Shock: Class II (No Primary Earth connection is required)

Electrical Safety: TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1, Limited Power Source (LPS)

CE: In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation: Input to Output: 3.0KVac

Industrial Control Equipment: UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Safety Entry Low Voltage: SELV (EN 60950)

UKCA: In conformance with 2016 No. 1101. The Electrical Equipment (Safety) Regulations 2016 and 2016 No. 1091 The Electromagnetic Compatibility Regulations 2016
