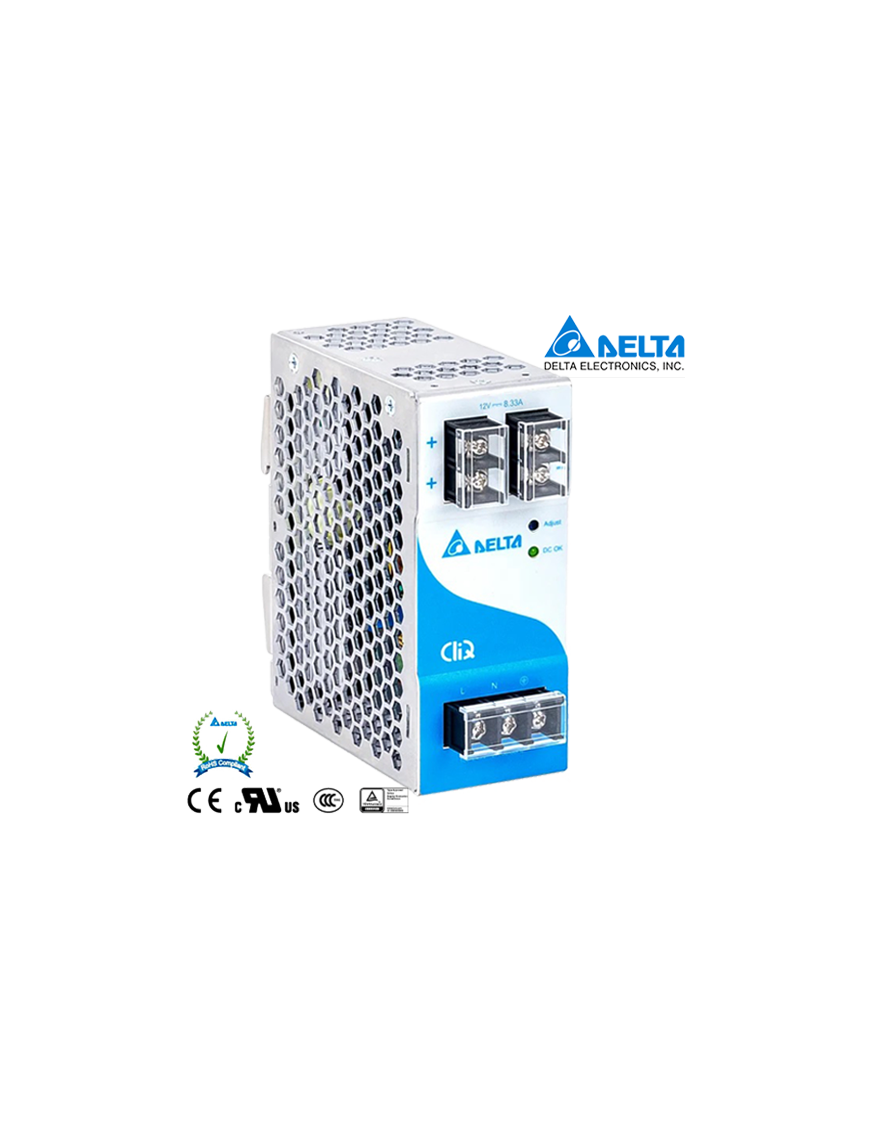

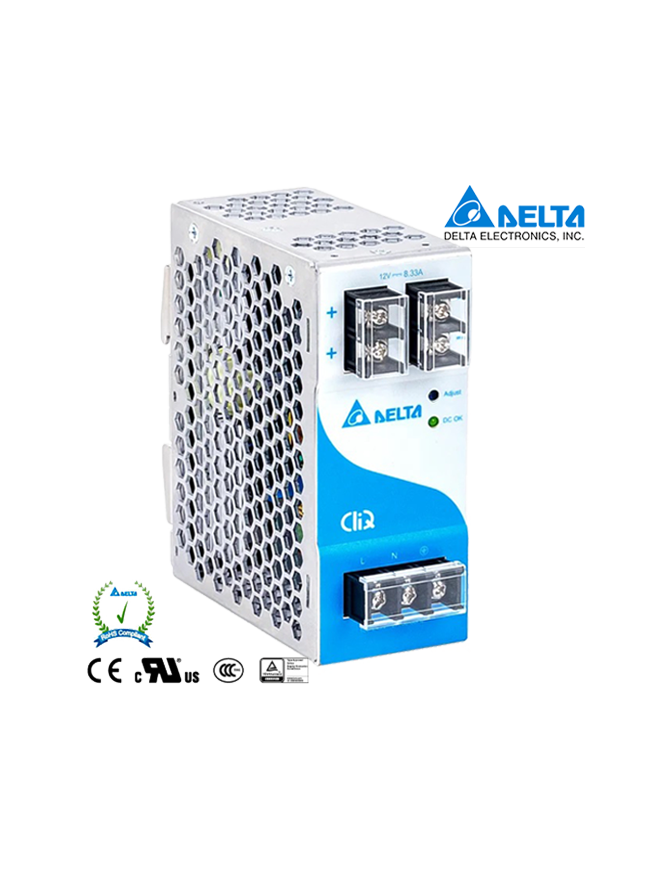

DRP-100-12 ΤΡΟΦΟΔΟΤΙΚΟ DELTA ΡΑΓΑΣ DRP012V100W1AA DELTA ΤΡΟΦΟΔΟΤΙΚΑ

Output Current: 8.33A

Output Voltage: 12V

Output Voltage Adjustment Range: 11-14Vdc

Output Power: 100W

Line Regulation: < 0.5% (@ 85-264Vac input, 100% load)

Load Regulation: < 1% (@ 85-264Vac input, 0-100% load)

PARD: < 100mVpp

Start-up Time: < 600ms @ nominal input (100% load)

Hold-up Time: > 22ms @ 115Vac, > 110ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage): ± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

Start-up with Capacitive Loads: 10,000µF Max

Rise Time: < 40ms @ nominal input (100% load)

Nominal Input Voltage: 100-240Vac

Input Voltage Range: 85-264Vac

Nominal Input Frequency: 50-60Hz

Input Frequency Range: 47-63Hz

DC Input Voltage Range: 120-375Vdc

Input Current: < 2.50A @ 115Vac,< 1.50A @ 230Vac

Efficiency at 100% load: > 85.5% @ 115Vac, > 87.5% @ 230Vac

Inrush Current: < 100A @ 115Vac, No Damage @ 230Vac

Leakage Current: < 1mA @ 240Vac

Power Dissipation: 0% load: < 0.85W @ 115Vac, < 1.2W @ 230Vac
100% load: < 16.5W @ 115Vac, < 14.0W @ 230Vac

Case Chassis / Cover: Aluminium

Indicator: Green LED (DC OK)

Cooling System: Convection

Input Terminal: 3 Pins (Rated 300V/20A)

Output Terminal: 2 Pins (Rated 300V/20A)

Noise Sound Pressure Level (SPL): < 40dBA

Mounting Rail: Standard TS35 DIN Rail in accordance with EN 60715

Wire: Input / Output: AWG 18-14

Unit Weight: 0.64 kg (1.41 lb)

Dimensions: 121 x 50 x 118.7 mm

Operating Temperature: -20°C to +80°C

Storage Temperature: -25°C to +85°C

Power De-rating: Vertical: > 50°C de-rate power by 2.5% / °C
Horizontal: > 50°C de-rate power by 2.5% / °C , > 70°C de-rate power by 4% / °C

Operating Humidity: 5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating): IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 6 times in total

Vibration (Non-Operating): IEC 60068-2-6, 10Hz to 500Hz @ 50m/S² (5G peak); 90 min per axis for all X, Y, Z direction

Operating Altitude: 0 to 2,000 Meters (6,560 ft)

Pollution Degree: 2

Over Voltage Category: III, According to IEC/EN 62477-1 (clearance and creepage distances)
