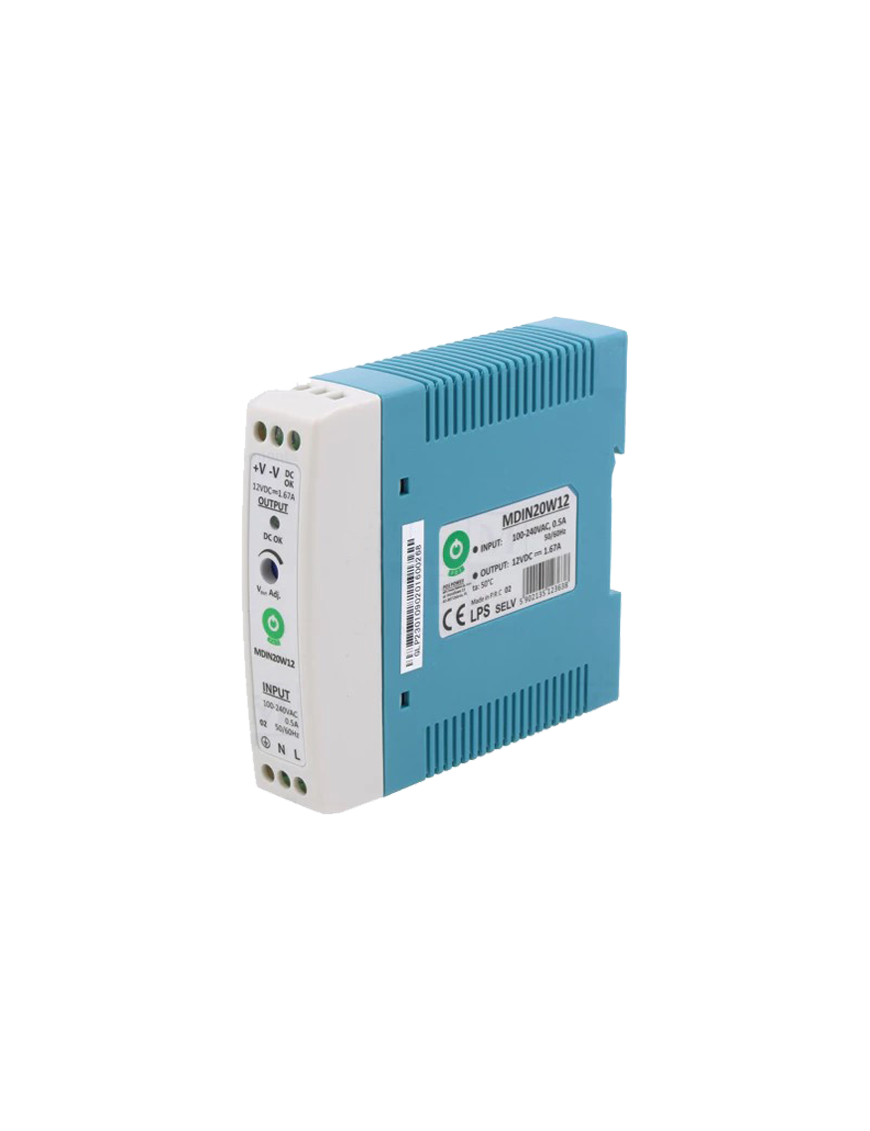

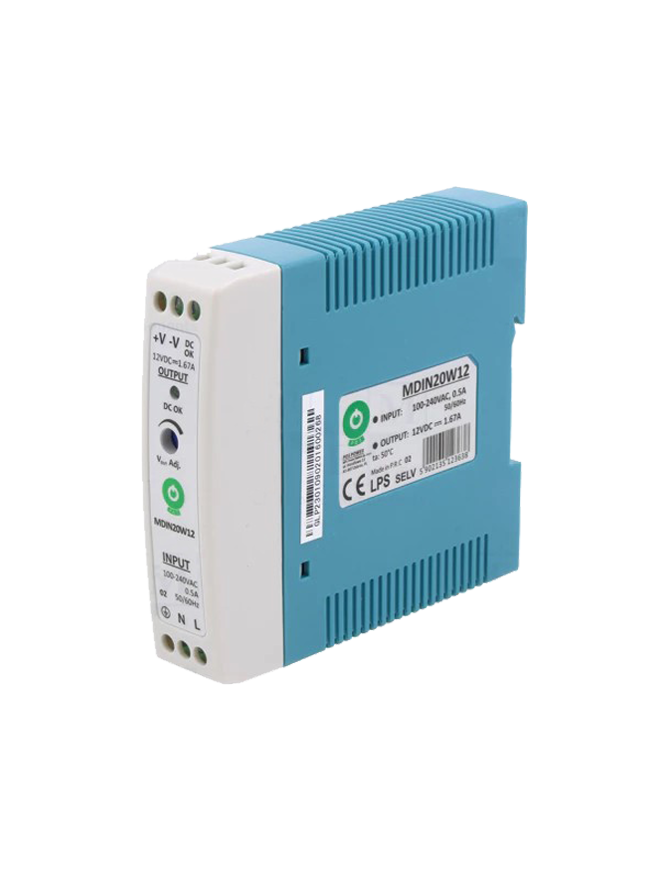

MDIN-20-12 ΤΡΟΦΟΔΟΤΙΚΟ ΡΑΓΑΣ MDIN20W12

MDIN20W12

The new DIN rail switch-mode power supplies of the MDIN series from POS-Power stand out due to their high reliability and stability as well as their space-saving dimensions. This means that the switch-mode power lines can also be used without any problems in control cabinets with limited space. Installation is quick and uncomplicated thanks to the simple click system on standard DIN top-hat rails. In addition, the DIN rail power supplies are equipped with extensive protective devices (short circuit, overload, overvoltage, temperature) and display the DC-OK signal using the integrated LED.

Features:

• Power: 20 W
• Output voltage: 12 V DC (adjustable 14 - 17 V)
• Output current: 0 - 1.67 A
• low residual ripple: 280 mVpp
• Efficiency: 80%
• Inrush current: max. 60 A
• Universal input: 90 - 264 V AC
• Type: constant voltage power supply
• Can be mounted directly onto the DIN rail (all common DIN rails such as TS-35/7.5 or 15)
• Closed design, touch-protected screw connections
• Fanless convection cooling
• Overload protection through current limitation, auto recovery
• Protective devices against short circuit, overload, overvoltage, overheating
• LED display and DC OK signal
• low no-load power
• Οperating temperature range: -20 ... +50 °C
• Dimensions / Weight: 100 x 94 x 23 mm / 150 g

• General
• Type
• Switching power supply
• Temperatur max.
• -20 … +50
• Design
• Rail mounting

• Electrical values
• Output voltage
• 12 V DC
• Current
• 1.67
• Performance
• 20 W
• Efficiency
• 80 %
• Making current
• 60 A
• Ripple
• 280 mV

• Implementation
• Cable cross-section
• Hutschiene, 15 mm²
• Mounting
• DIN rail

• Specials
• Short circuit protected
• Yes
• Overload protection
• Yes

• Packaging

• Packaging
• Individual packaging

• Measures

• Width
• 100 mm
• Height
• 94 mm
• Depth
• 23 mm
